LCT Laser Die Cutter

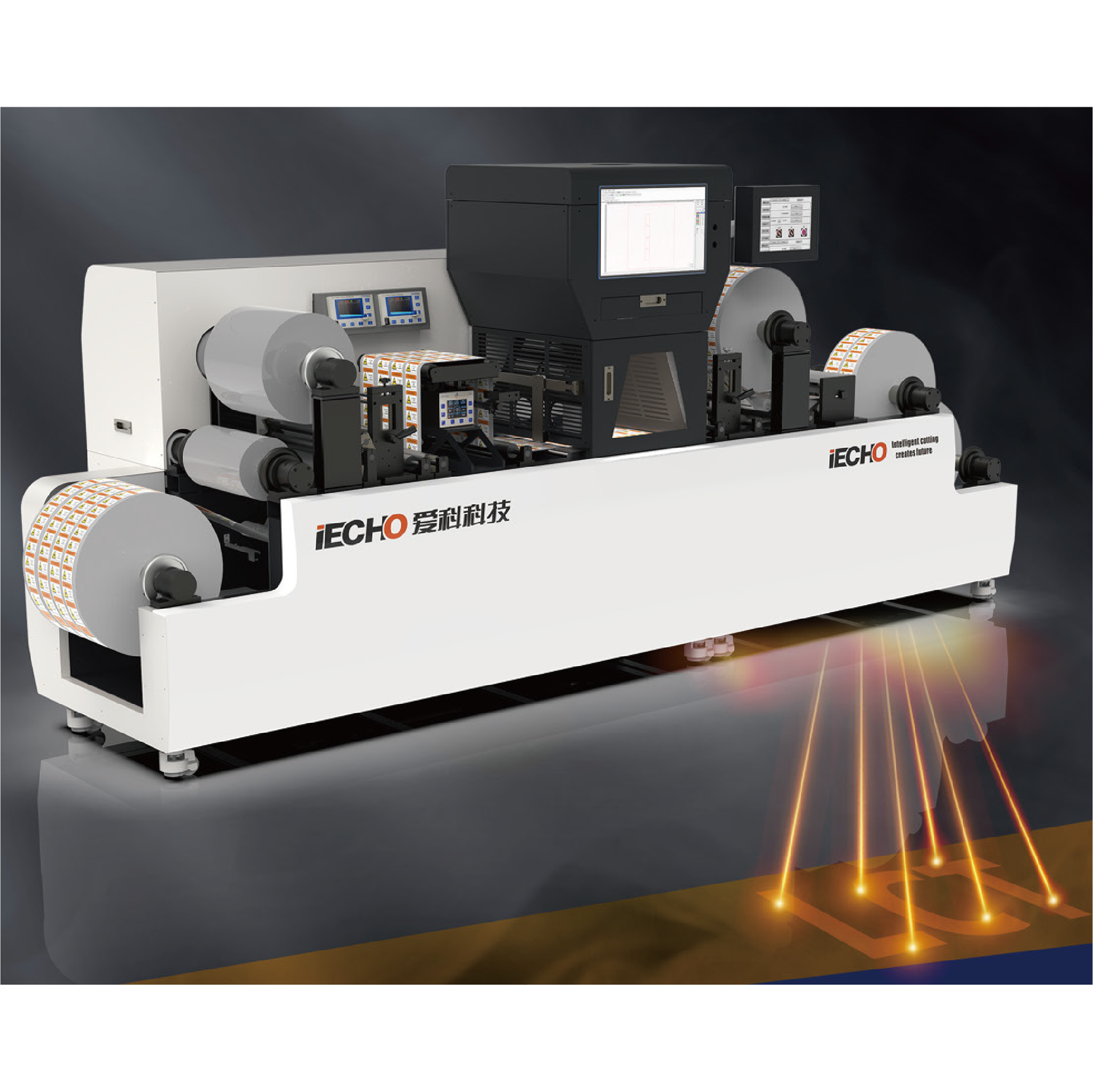

IECHO LCT350 – Technical Overview

• Machine Type: LCT350 Laser Die Cutter
• Max Feeding Speed: 1500 mm/s
• Die Cutting Accuracy: ±0.1 mm
• Cutting Width: Up to 350 mm
• Cutting Length: Unlimited
• Material Width Capacity: Up to 390 mm
• Max Roll Diameter: 700 mm
• Supported File Formats: AI, BMP, PLT, DXF, DS, PDF
• Operating Temperature: 15–40°C
• Machine Dimensions (L×W×H): 3950 × 1350 × 2100 mm
• Weight: 2000 kg
• Power Supply: 380V, 3-phase, 50Hz
• Air Pressure Requirement: 0.4 MPa
• Laser Power: 300W
• Chiller Power: 5.48 kW
• Chiller Dimensions: 550 × 500 × 970 mm
• Vacuum Suction System Power: 0.4 kW
