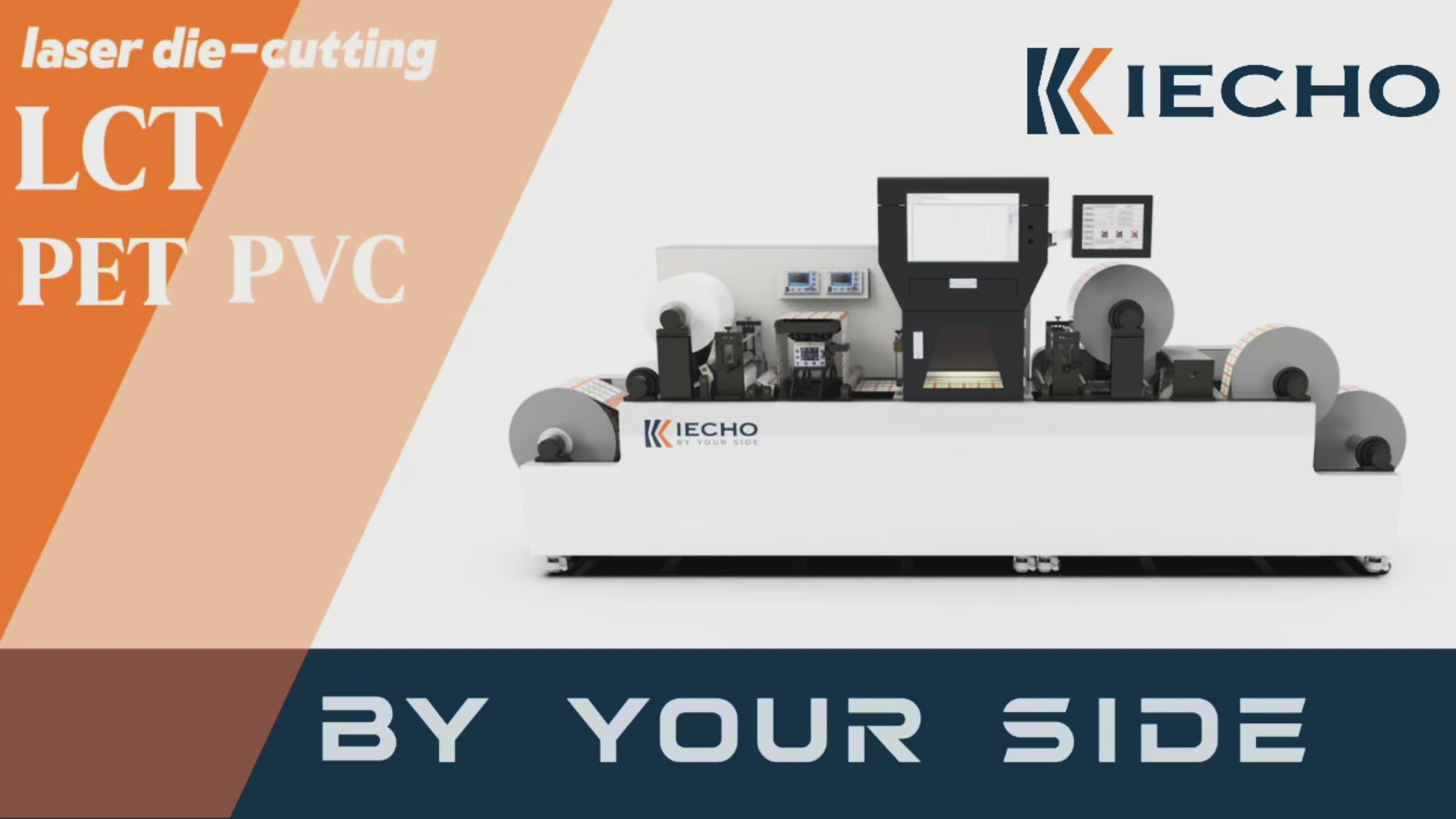

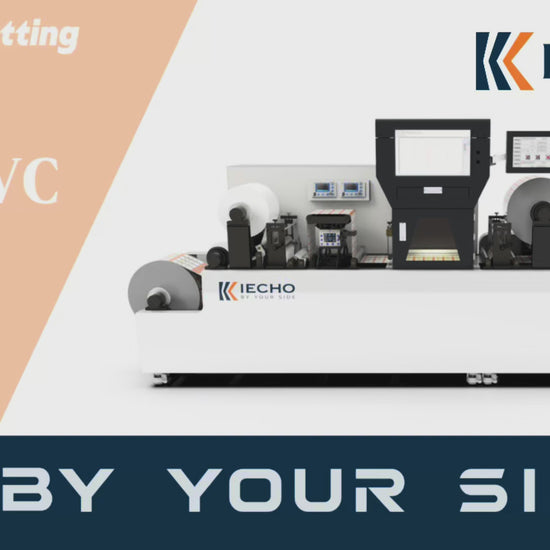

LCT350 Laser Die Cutting System

The IECHO LCT350 is a high-performance laser die cutting system designed for digital label and packaging production. It features:

• Max cutting width: 350 mm
• Max material width: 390 mm
• Max feeding speed: 1500 mm/s
• Die cutting accuracy: ±0.1 mm
• Cutting length: Unlimited
• Laser power: 300W
• Supported formats: AI, BMP, PLT, DXF, DS, PDF
• Workflow: Roll-to-roll, roll-to-sheet, sheet-to-sheet
• Smart features: Automatic deviation correction, negative pressure suction, direct file import
• Footprint: 3950 × 1350 × 2100 mm
• Power: 380V 3P 50Hz, 5.48 kW chiller, 0.4 kW suction system

Ideal for short-run, high-precision jobs, the LCT350 eliminates tooling delays, reduces waste, and supports fast changeovers with digital workflow integration.
