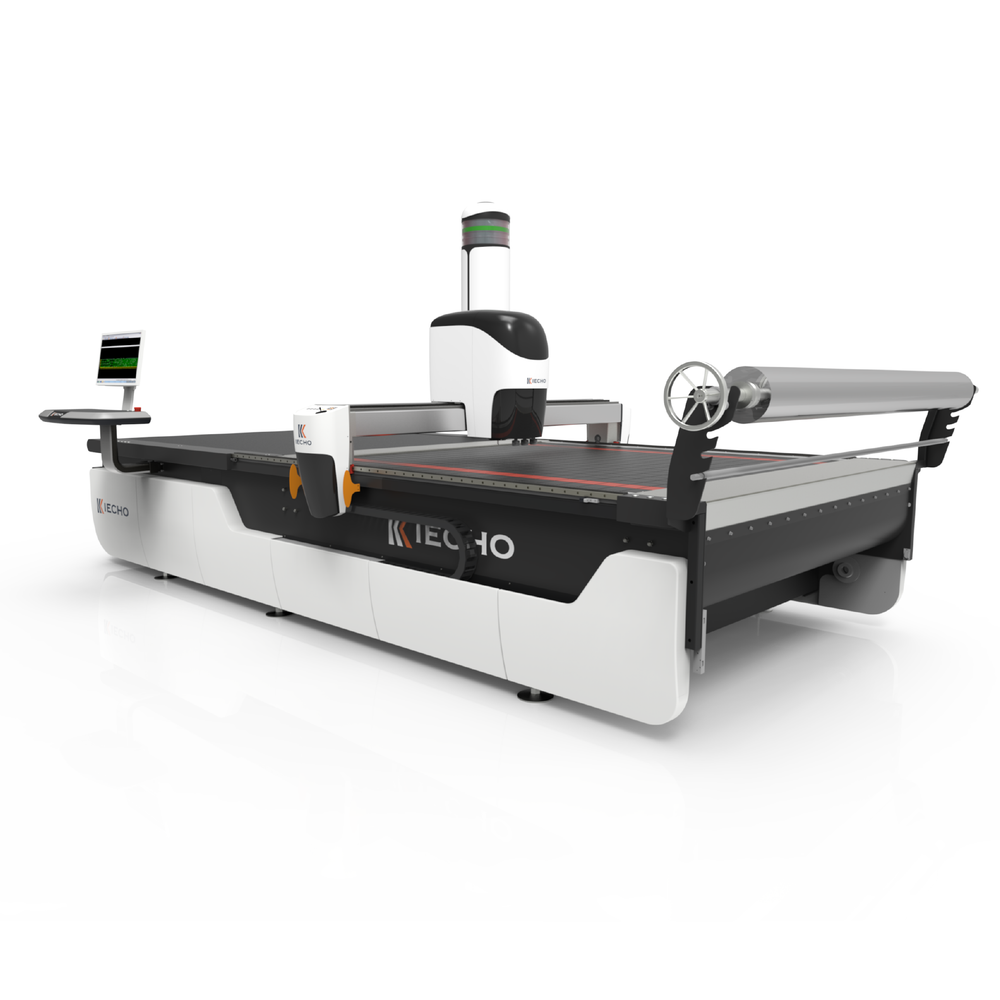

IECHO GLSC Automatic Multi-Layer Cutting System
The IECHO GLSC Automatic Multi-Layer Cutting System is a high-performance digital cutting solution designed for mass production of flexible materials, delivering speed, precision, and intelligent automation.
The IECHO GLSC Automatic Multi-Layer Cutting System is engineered for high-volume production environments requiring precision cutting of soft and flexible materials such as fabrics, leather, foam, and composites.
Built on a modular design concept, this system allows manufacturers to configure their cutting solution based on evolving production needs. With intelligent automation, high-speed oscillating tools, and advanced vacuum technology, it ensures consistent accuracy and efficiency across large production runs.
The system integrates seamlessly with mainstream CAD software through a powerful cloud-based control center, enabling optimized workflows, reduced downtime, and scalable production capabilities.
- Modular cutting system adaptable to production requirements
- High-speed multi-layer cutting for industrial workflows
- Advanced vacuum and motion control for precision
- Cloud-based integration with CAD software systems
See the GLSC Cutting System in Action
Watch how the IECHO GLSC system delivers high-speed, automated multi-layer cutting for industrial production environments.
Key features
- One-piece molded steel frame for maximum structural accuracy
- High-frequency oscillating tool up to 6000 RPM
- Dynamic balance optimization for reduced noise and improved precision
- Tool cooling system to prevent material adhesion
- Multi-function punching device (multiple specifications in one cycle)
- Automatic bristle cleaning system for consistent suction performance
- Advanced vacuum chamber with minimal deformation under pressure
- Advanced vacuum chamber with minimal deformation under pressure
Optional features
- Cutter cooling device
- Cutter cooling device
- Lateral movement system
- Dual
Ideal applications
- Textile and garment manufacturing
- Textile and garment manufacturing
- Automotive interior cutting
- Luggage and bag production
- Luggage and bag production
- Foam and composite material cutting
Why Choose IECHO
- Modular system design for long-term scalability
- High-speed industrial cutting performance
- Intelligent automation reduces labor and error
- Seamless integration with CAD and digital workflows
- Built for continuous, high-volume production environments
Technical Specifications
| Specification | Metric | Imperial |
|---|---|---|
| Effective Cutting Width | 1.8 – 2.2 m | 5.9 – 7.2 ft |
| Machine Dimensions | 5 × 3.2–3.6 × 2.4 m | 16.4 × 10.5–11.8 × 7.9 ft |
| Max Cutting Speed | Max Cutting Speed | 295 ft/min |
| Max Acceleration | 0.8 G | 0.8 G |
| Max Cutting Height | 90 mm | 3.54 in |
| Machine Weight | 3000–3500 kg | 6,614–7,716 lbs |
| Operating Voltage | 380V ±10% | 380V ±10% |
| Air Pressure | ≥0.6 MPa | ≥0.6 MPa |
